SigGen

Signal Generator based on AD9833 modules

Schematic: PDF

No firmware yet

PCB renders

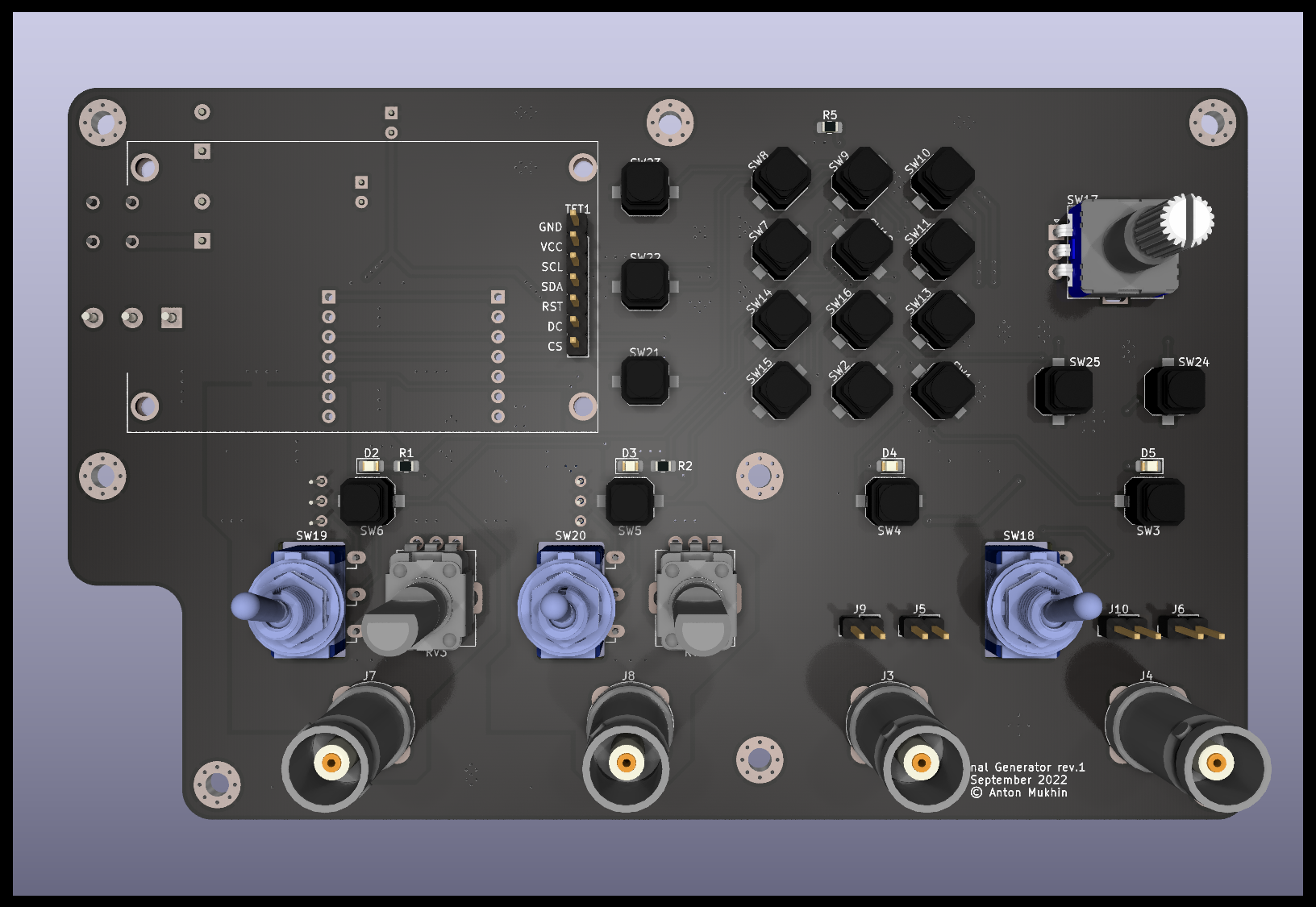

TOP

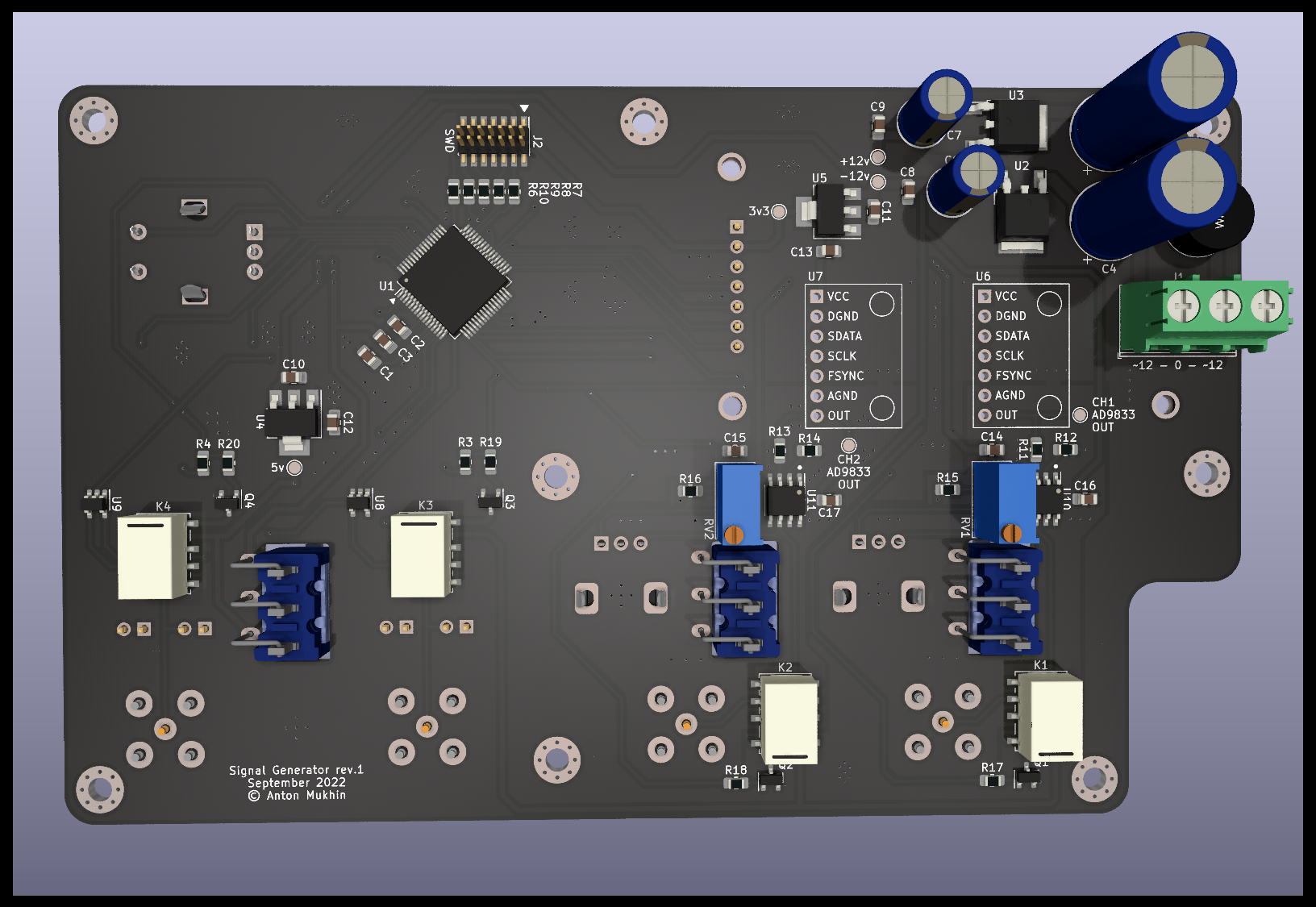

BOTTOM

Assembly renders

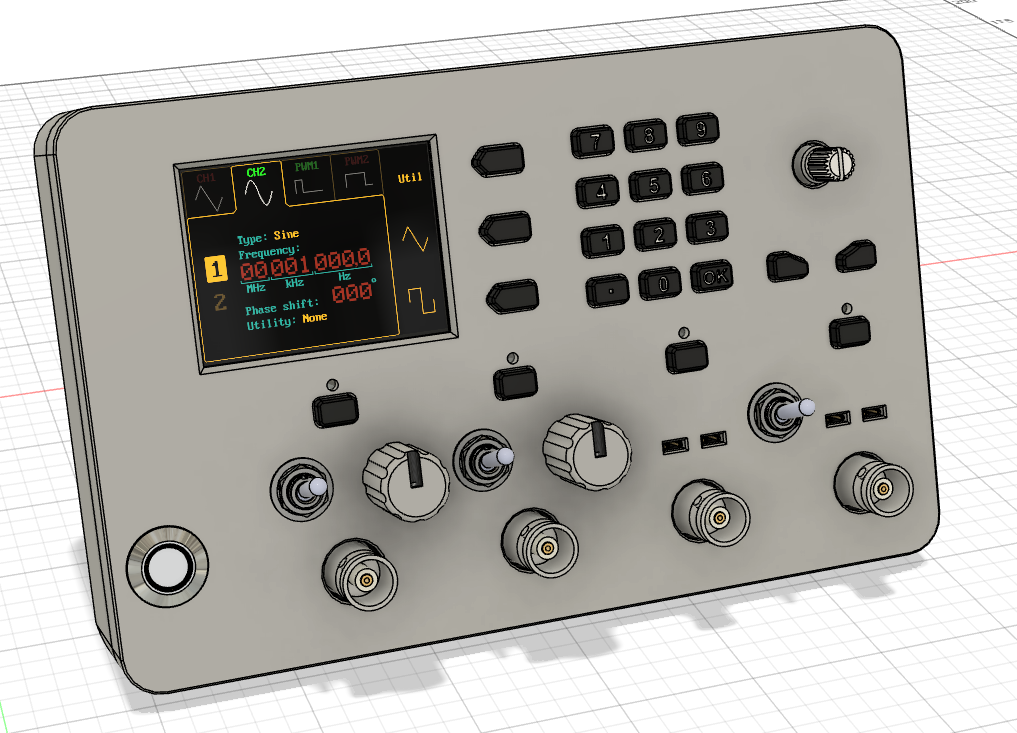

CAD1

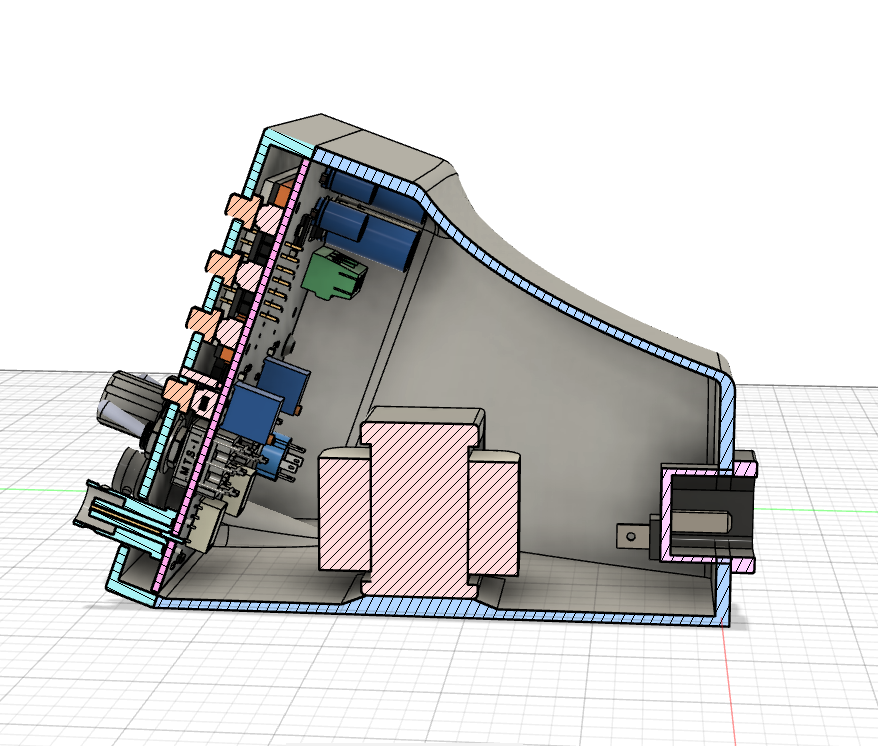

CAD2
