PCB-Heater

PCB reflow station based on a heater plate.

STM32 MCU
Color TFT display
Display Touch control
Heats the PCB acording to a solder profile

Firmware is in WIP stage!

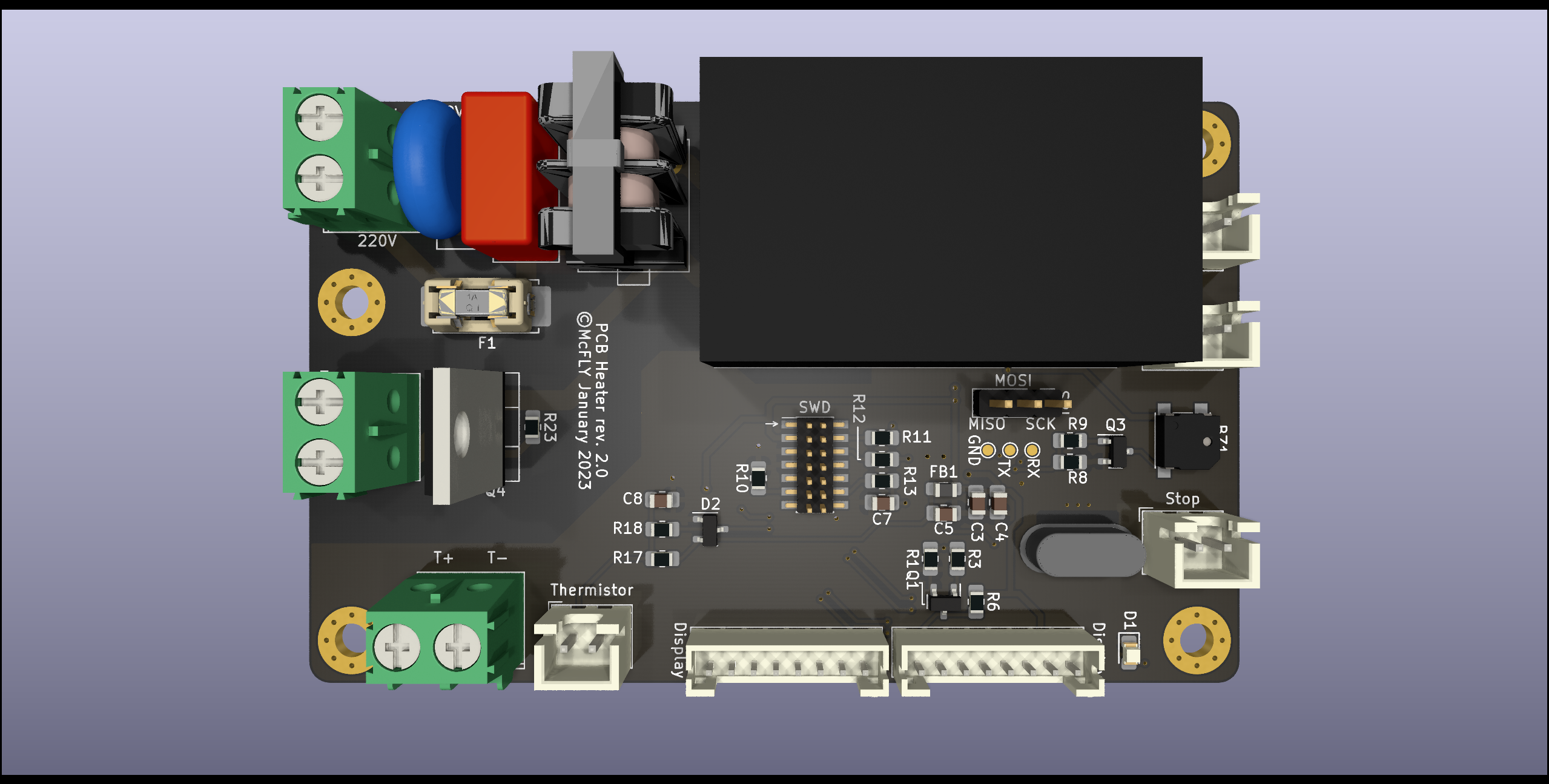

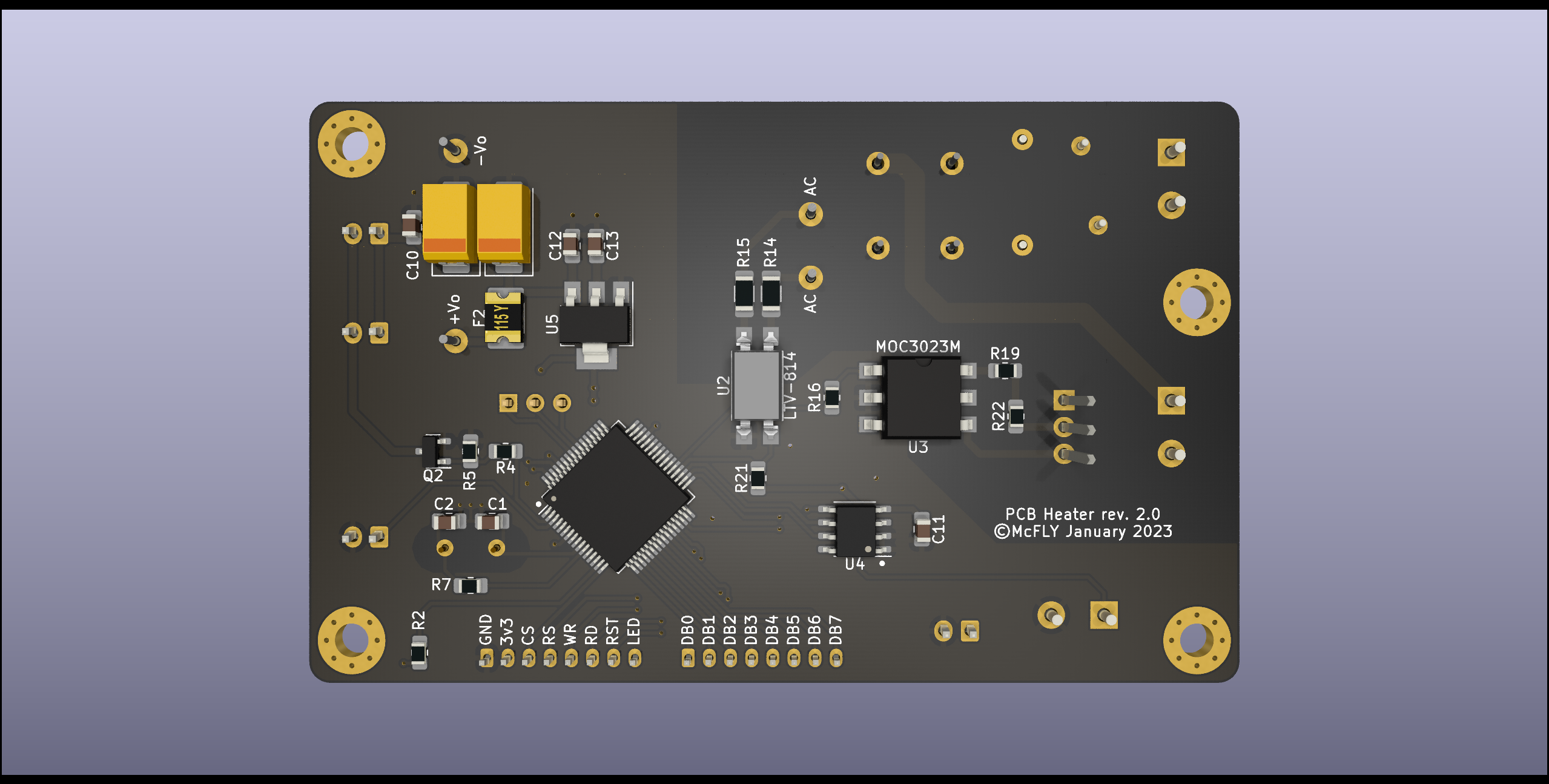

PCB renders

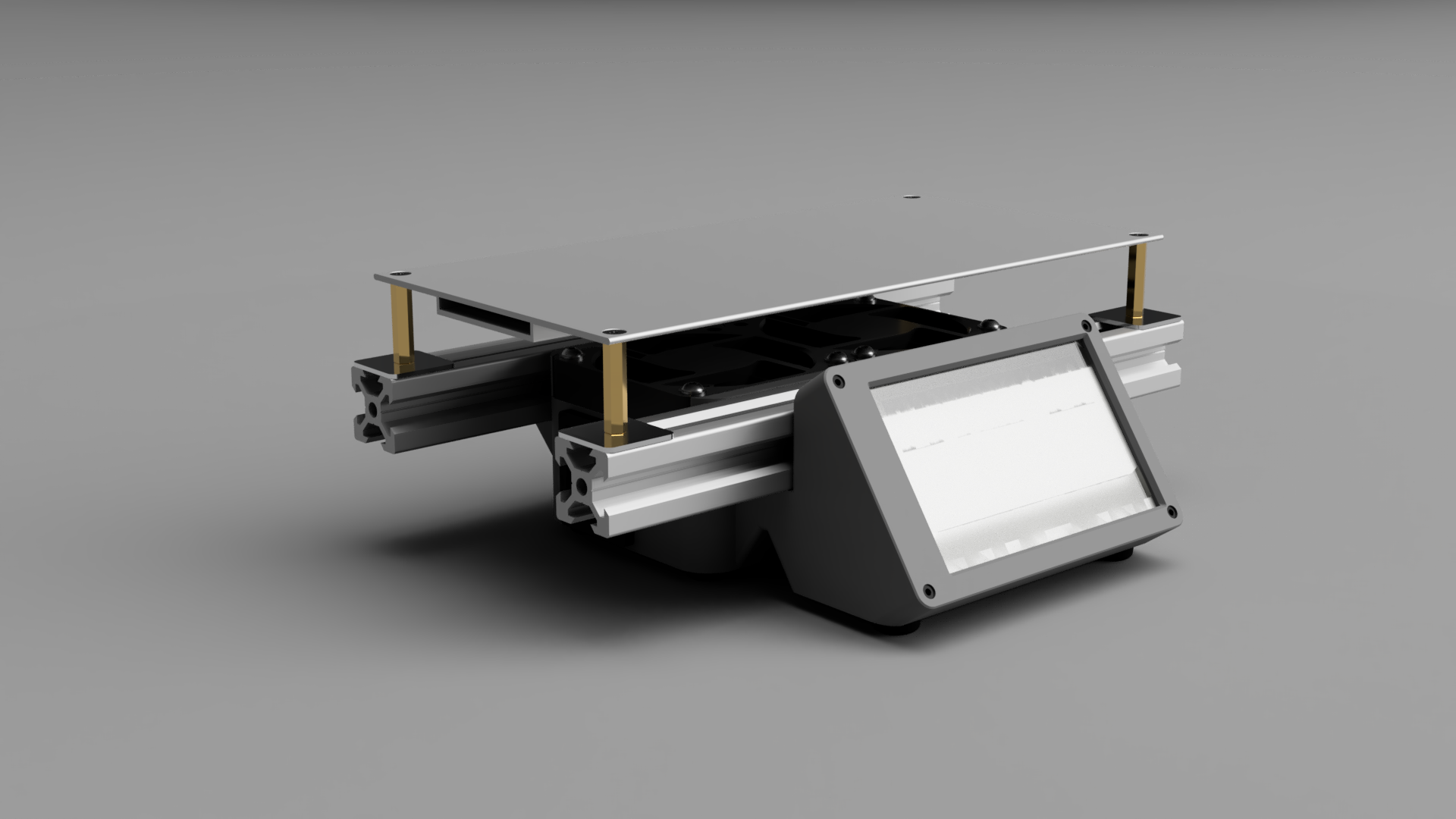

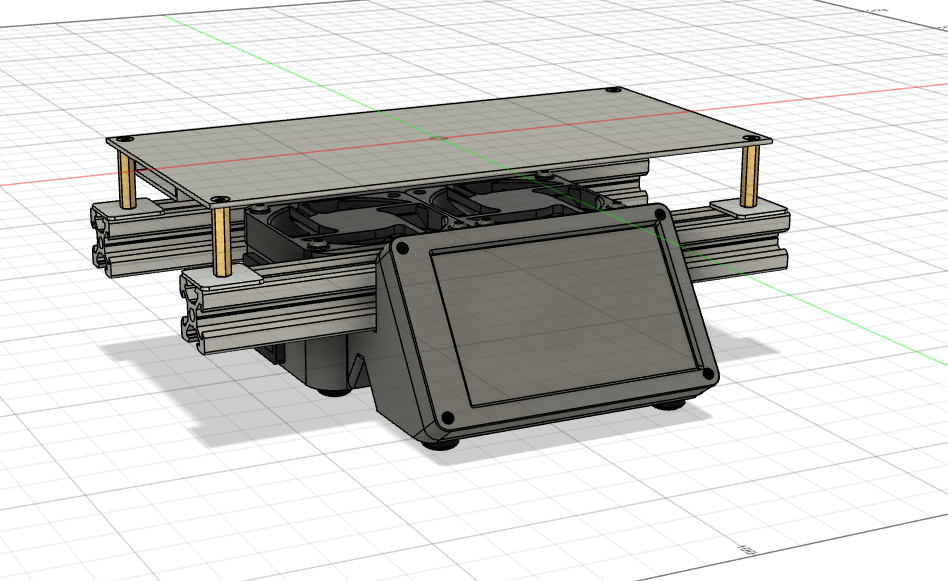

Assembly renders
