PCB-Heater

PCB reflow station based on a heater plate.

  • STM32 MCU
  • Color TFT display
  • Display Touch control
  • Heats the PCB acording to a solder profile

Schematic: PDF

Firmware is in WIP stage!

PCB renders

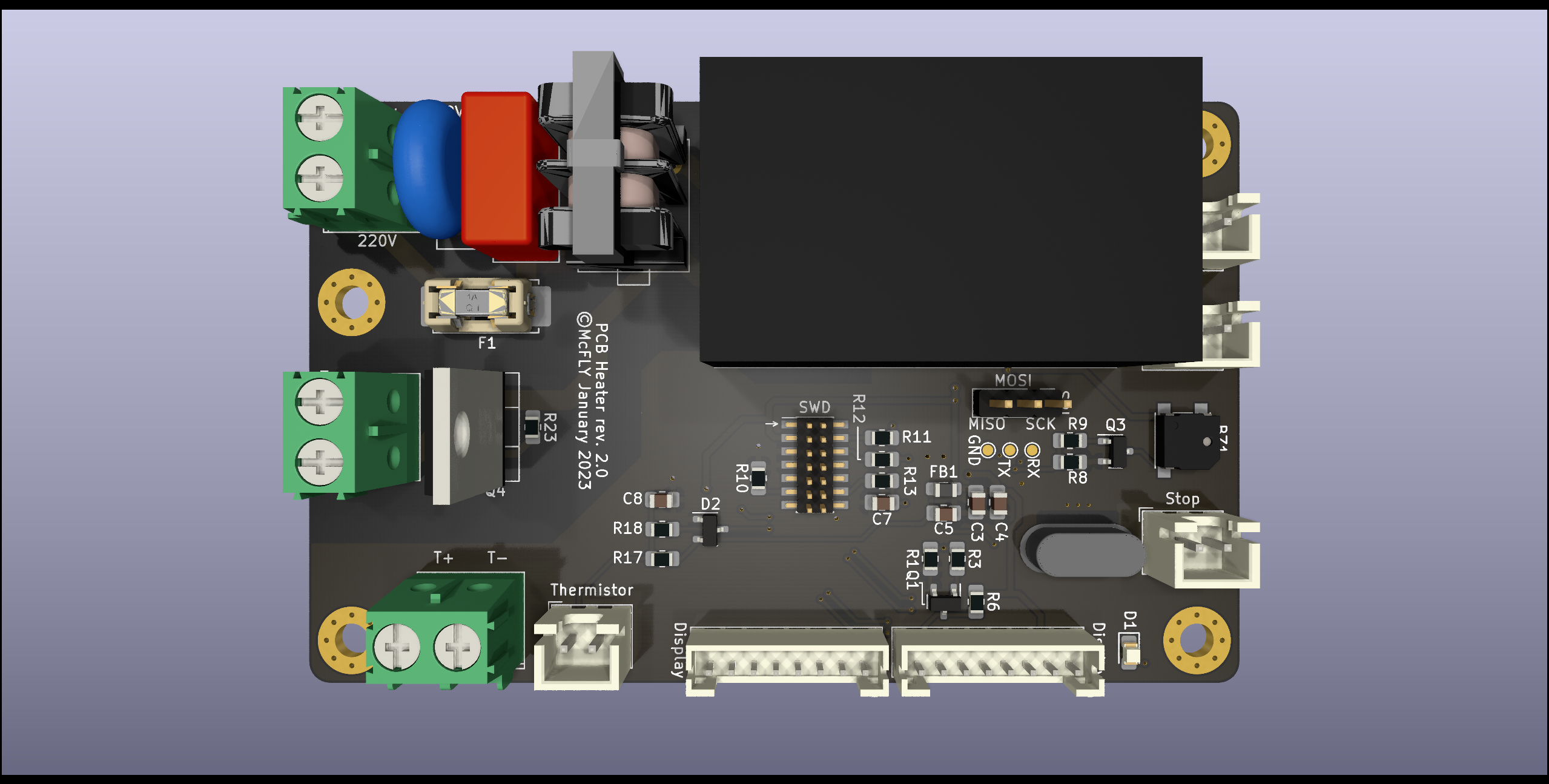

TOP

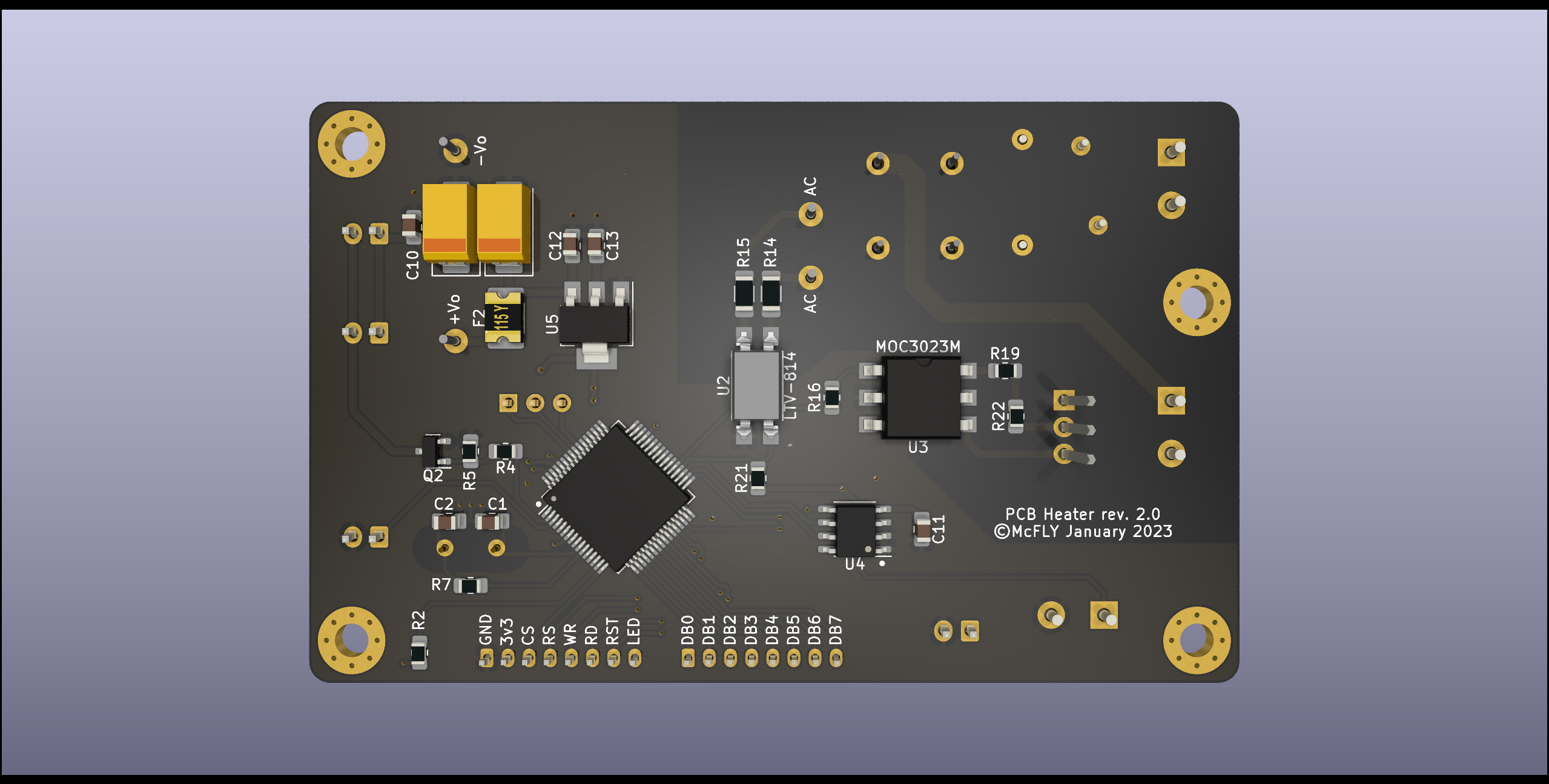

BOTTOM

Assembly renders

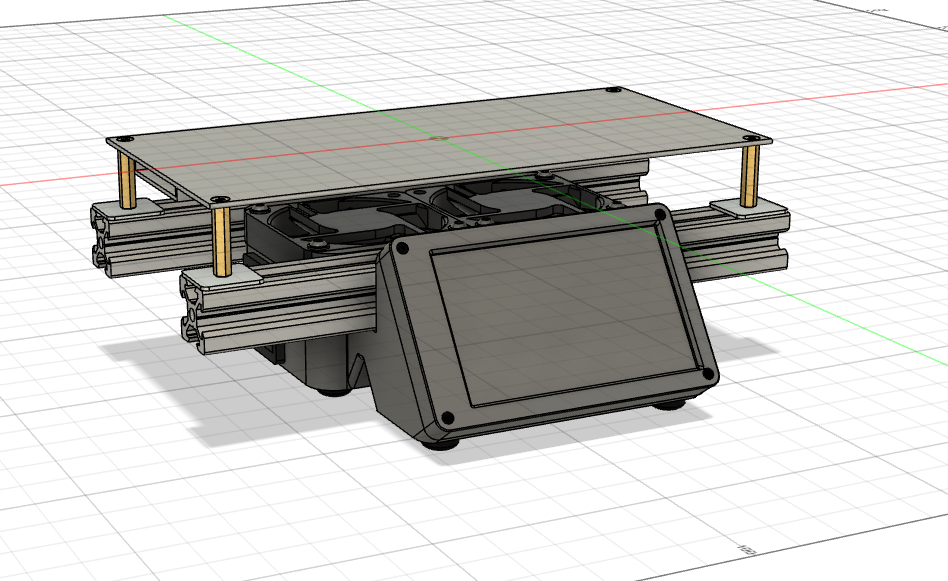

CAD

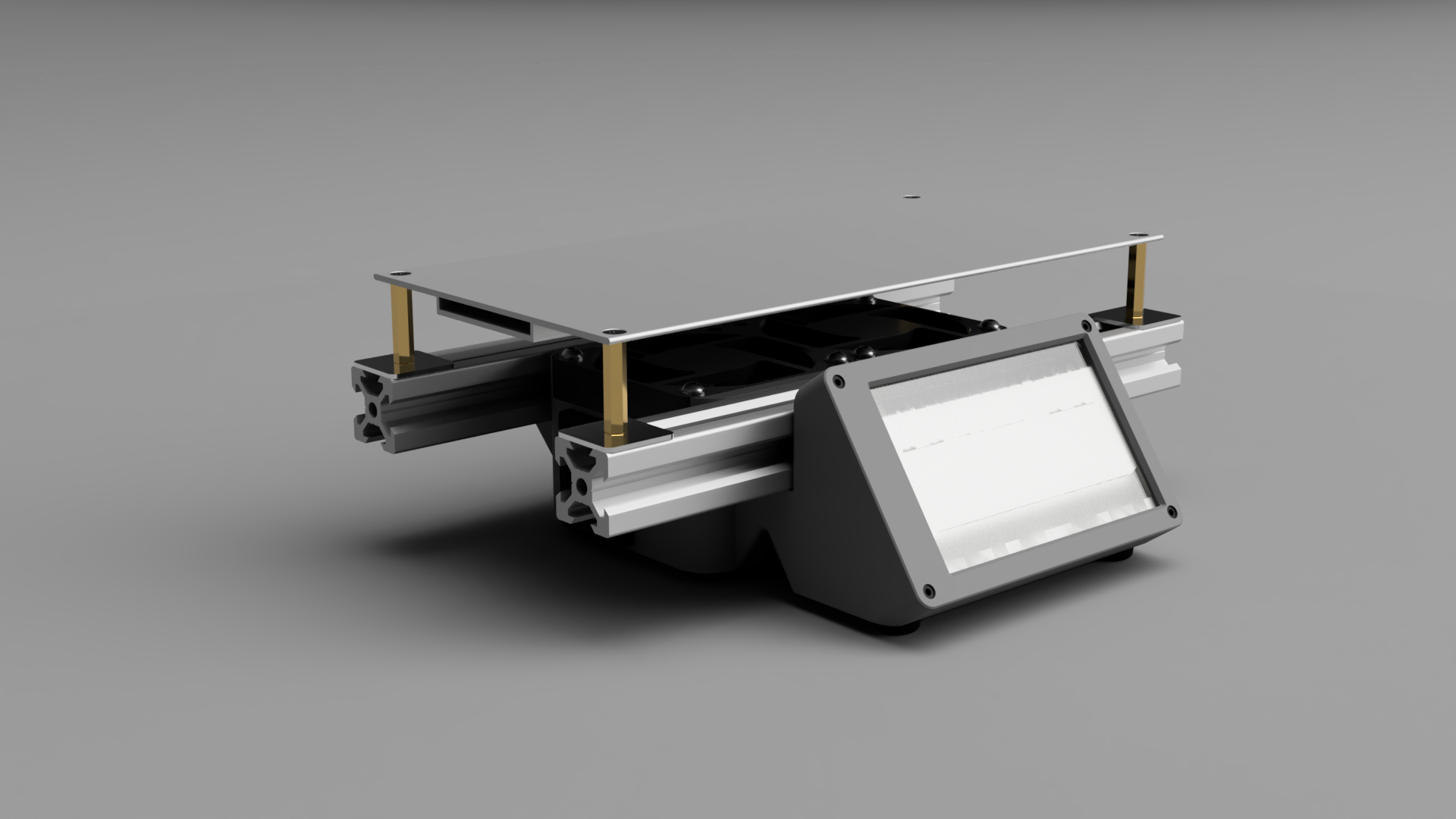

Render
